Deskripsi Produk
1. Product Overview
| jamming bands |
840-930MHz--50W 1160-1280MHz--50W 1550-1630MHz--50W 2380-2500MHz--50W 5150-5300MHz--50W 5720-5880MHz--50W |
| jamming distance |
500-2000m |
| antennas |
directional antenna |
| Power connector |
DC 24V |
| size |
L*W*H:850*315*80 mm |
| weight |
7.5kg |
2. Product Overview
Portable six-channel integrated countermeasures gun equipment, with portable design, can be operated by a single soldier, with the function of intercepting, driving away and forcing down the black-flying drone. Applying UHF sweeping technology to transmit a variety of broadband signals, it effectively suppresses the mainstream drone remote control, video transmission and positioning bands in the current market, cuts off the connection between the flyer and the drone, forces the drone to be out of control, and leads to the effect of its return, forced landing and so on. It is suitable for public security, electric power system, anti-terrorism field, military strongholds, airports, prisons and guards, activity sites, breeding farms and other low-altitude security strongholds.
3. product features
◎ The interference signal fully covers the remote control, video transmission and positioning bands of mainstream drone products.；
◎ Adopts UHF broadband seamless jamming technology to quickly generate multi-band suppression signals；
◎ Adopt directional antenna, accurate positioning, small radiation to the operator；
◎ For all civilian drones, eight-channel segmented control, any switching mode；
◎ Portable integrated design, high mobility, small size, light weight can be deployed flexibly；
◎ Designed with built-in battery, lasts about 30 minutes, 6-8 hours of charging, with battery level indicator；
◎ jamming bands: 900M/1.2G/1.5G/2.4G/5.2G/5.8G.
4. Product Parameters
4.1Frequency bands and power
|
No.
|
frequency band
|
Power
|
Remark
|
|
1
|
840-930MHz
|
50W(47dBm)
|
|
|
2
|
1160-1280MHz
|
50W(47dBm)
|
|
|
3
|
1550-1630MHz
|
50W(47dBm)
|
|
|
4
|
2380-2500MHz
|
50W(47dBm)
|
|
|
5
|
5150-5300MHz
|
50W(47dBm)
|
|
|
6
|
5720-5880MHz
|
50W(47dBm)
|
|
|
jamming distance:800-2000m
|
4.2 Safety and standards
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
model
|
SZSRYFZ-GL-06
|
|
|
2
|
protection level
|
IP65
|
|
4.3 Electrical standards
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
power supply
|
24V/ 9000mAh
|
|
|
2
|
power consumption
|
720 W
|
|
|
3
|
output power
|
300 W
|
|
4.4 Mechanical parameters
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
size
|
L*W*H:850*315*80 mm
|
|
|
2
|
weight
|
7.5kg
|
|
4.5 Environmental adaptability
|
No.
|
Index
|
Parameter
|
Remark
|
|
1
|
working temperature
|
－20℃～＋55℃
|
|
|
2
|
storage temperature
|
－40℃～＋65℃
|
|
|
3
|
recommended storage temperature
|
20~30℃
|
|
|
4
|
relative humidity
|
80%RH
|
|
It can simultaneously send out more than six kinds of frequency band signals to jam the wireless control link, GPS link and wireless map transmission signal of the UAV, and each transmitting frequency band has an independent control switch. The equipment has the function of displaying the working status, battery power and other working status, and various instructions are clear and intuitive.
5. Product Dispaly

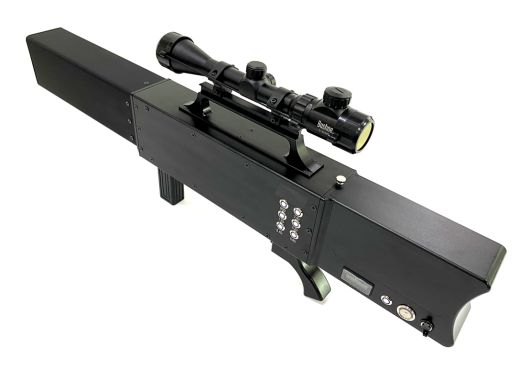

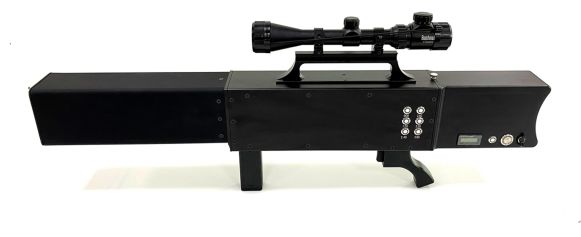

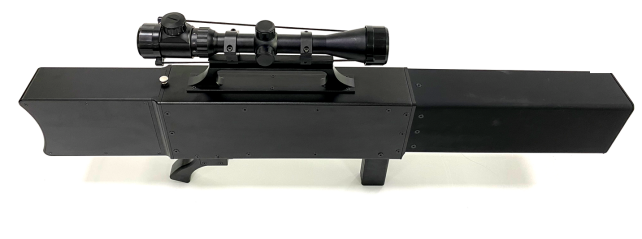

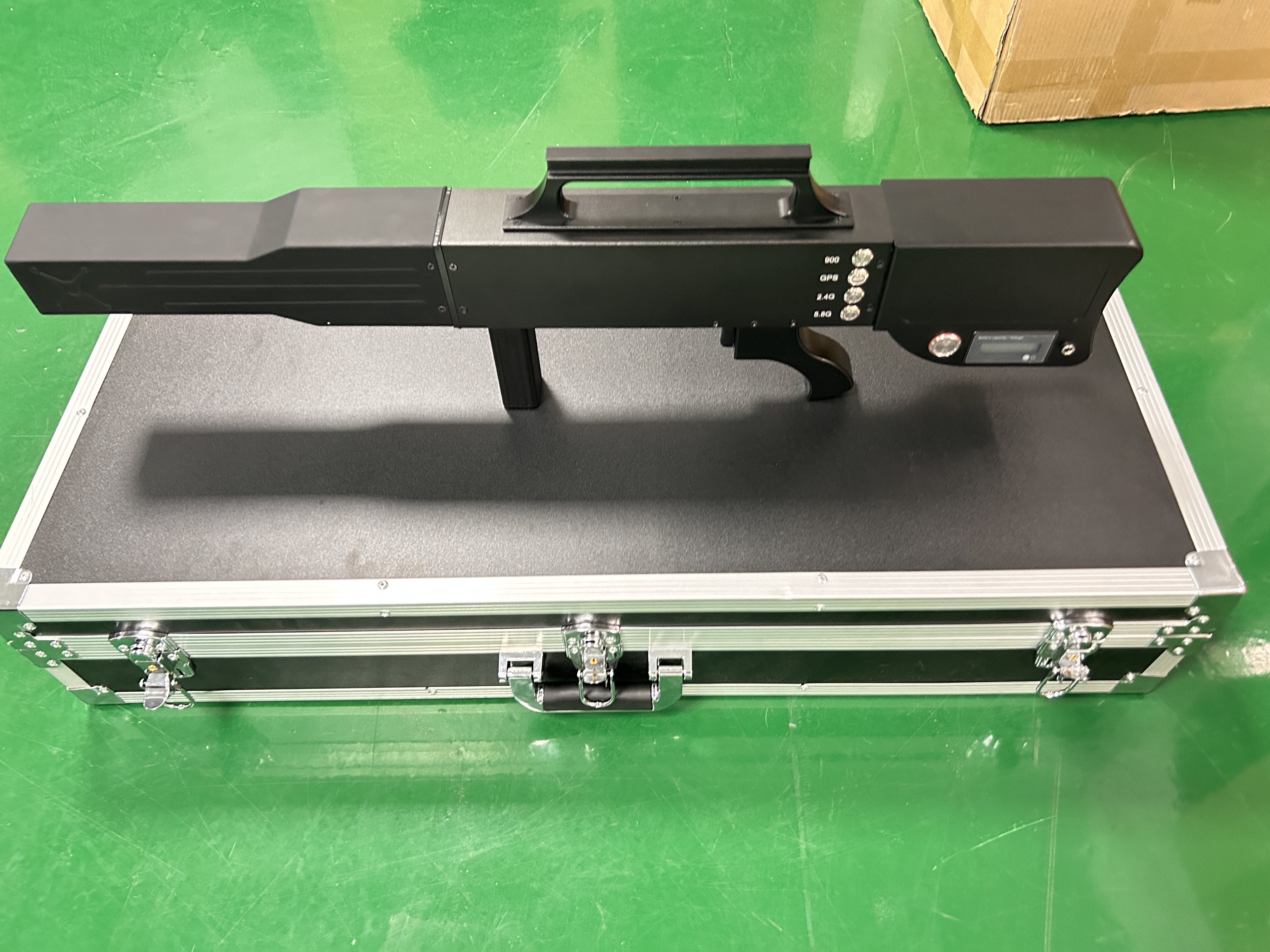

actual picture
packing list
|
No.
|
Items
|
Q’TY
|
Unit
|
|
1
|
handheld host
|
1
|
set
|
|
2
|
sighting glass
|
1
|
pcs
|
|
3
|
flightcase
|
1
|
pcs
|
|
4
|
charger
|
1
|
pcs
|
|
5
|
Charger power cable
|
1
|
pcs
|
|
6
|
batteries
|
2
|
pcs
|
Before you start using it, please check if all the above items are included in the equipment package. If any are missing, please contact us.
